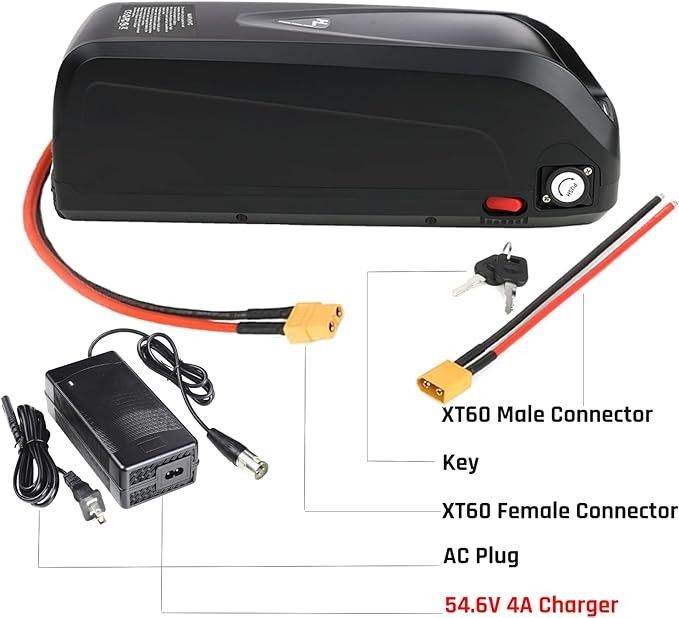

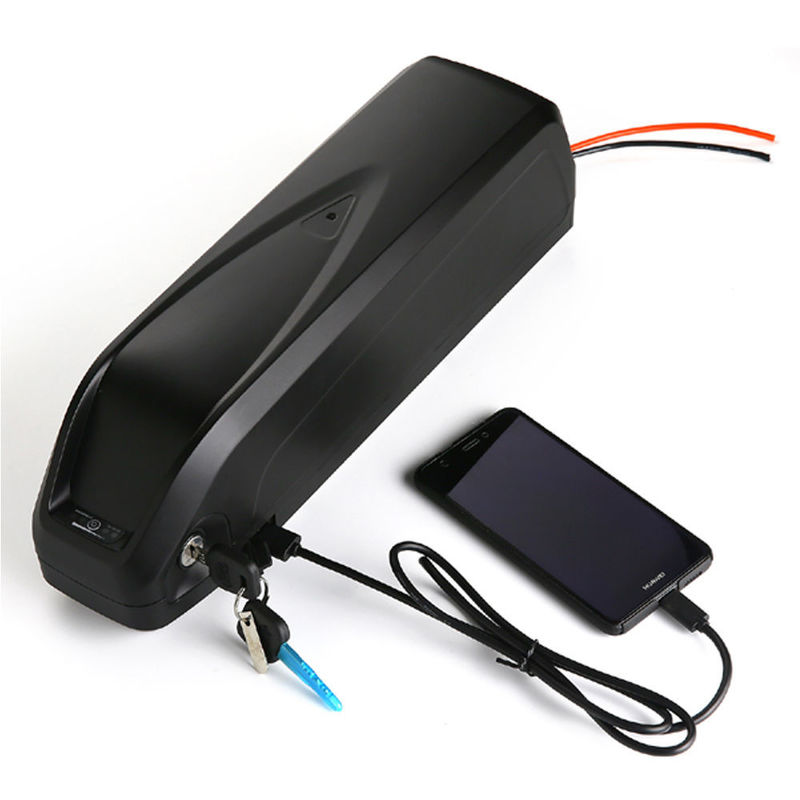

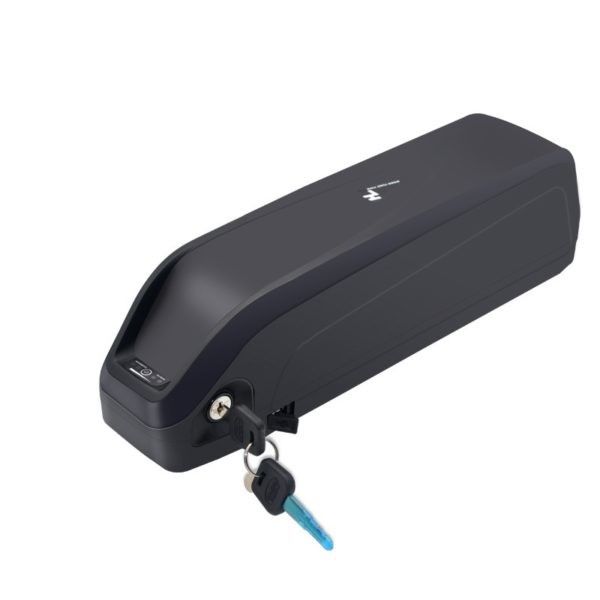

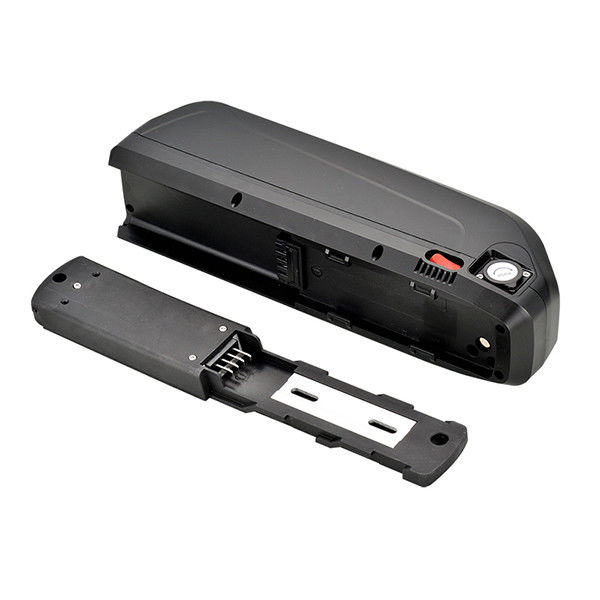

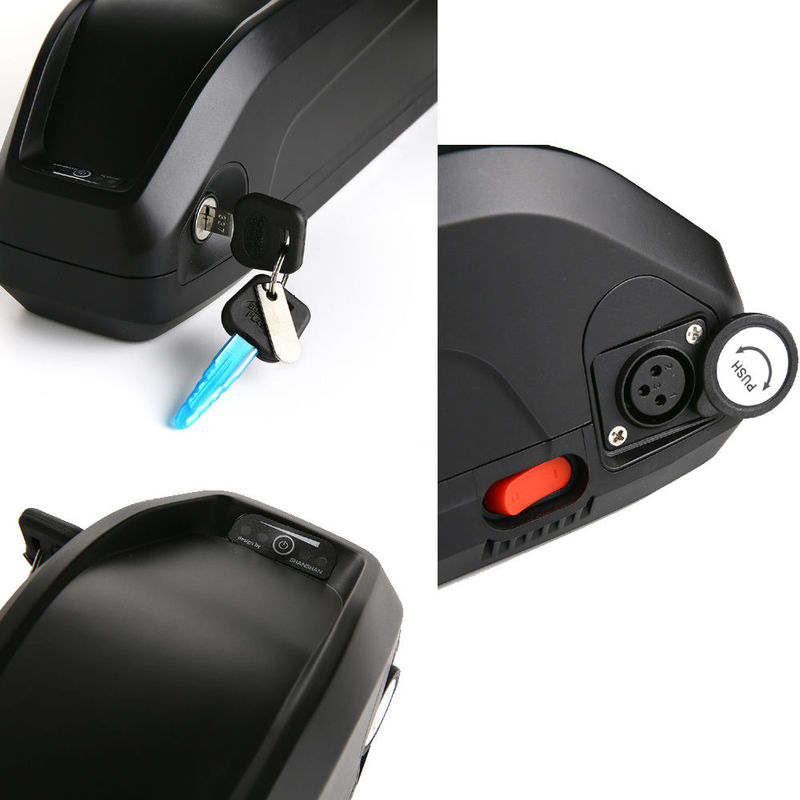

OEM Impulse Battery 48V 15.6ah 17.4ah, 19.2ah, E Bike Replacement Battery Fit Panasonic Electric Bicycle
| Brand Name: | TL |
| Model Number: | TL-EB-H48D |
| MOQ: | 50pcs |
| Price: | Negociated |
| Packaging Details: | Customer requirements |
| Payment Terms: | T/T |
Detail Information
Place of Origin:
Made in China
Certification:
MSDS, UN38.3, IEC62133
Model NO.:
TL-EB-H48D
Standard Voltage:
48V
Usage:
For E-bike Power
Specification:
365 X 92 X 104mm
HS Code:
8507600090
Type:
Lithium-Ion Battery Pack
Capacity:
15.6ah 17.4ah, 19.2ah
Transport Package:
Paper Box With PE Bag
Charging Time:
2-3 Hours
Warranty:
1 Year
Delivery Time:
30-45days
Supply Ability:
1500pcs/day
Highlight:
19.2ah E Bike Replacement Battery
,15.6ah E Bike Replacement Battery
,17.4ah E Bike Replacement Battery
Product Description
Product Description
48V Ebike battery 15.6ah 17.4ah, 19.2ah E-Bicycle Lithium 18650 Cell Rechargeable Battery E-Bike Replacement
Lithium Battery Features
1. Safety: safest Li-Ion battery, CE ROHS REACH approved, built in PCM/PCB, none fire or explosive
2. Clean and Green energy, no toxic material contained
3. Powerful: Battery can discharge in 15C~20C
4. Long life cycle, 80% capacity remain after 500 times deep cycle.
5. No memory effect,highly efficient charge anytime, no reduction of capacity
6. Operation temperature: -20~70°C
7.Small size, light weight:
8.Good performance at high temperature and high temperature resistance
9.Low self-discharge rate: < 3% monthly
Li-ion Battery Details
1.Lithium cylindrical rechargeable batteries with PCB protection
2.Internal PCB protection (patent pending design) protect battery from over charge,over discharge,over current and short circuit.
3.Manufactured under CE,ROHS, REACH to assure quality
4.Battery tested before delivery to ensure capacity, quality and lifetime
5.Pollution-Free/Long Cycle Life/Good Consistency
6.No memory effect
7.Existing stock for short delivery time.
Product Description
|
Nominal Voltage
|
48V
|
|
|
Nominal Capacity
|
15.6ah 17.4ah, 19.2ah
|
|
|
Continuous discharge current
|
35A(max)
|
|
|
Burst Discharge Current
|
54A(adjustable)
|
|
|
Power
|
500-1500W
|
|
|
Over-charged Protection Voltage
|
4.25±0.025V/Cell(adjustable)
|
|
|
Over -discharged Protection Voltage
|
2.50±0.10V/Cell(adjustable)
|
|
|
Charge mode
|
CCCV
|
|
|
Max charge Voltage
|
56V
|
|
|
Charging Current
|
2.0-4.0A
|
|
|
Charging Temperature
|
0~45ºC,45~85%RH
|
|
|
Discharging Temperature
|
-20~55ºC,45~85%RH
|
|
|
Circle life
|
>500 times
|
|
|
Storage Environment
|
One Month
|
-20~+55ºC,45~85%RH
|
|
Three Month
|
-20~+45ºC,45~85%RH
|
|
|
One Year
|
-5~+20ºC,45~85%RH
|
|
|
Dimension
|
high
|
reference sample
|
|
length
|
reference sample
|
|
|
thickness
|
reference sample
|
|
|
Weight
|
<5.0 KG
|
|
